How to Post-Process PCTG Parts Without Clouding: Expert Tips for Crystal-Clear Results

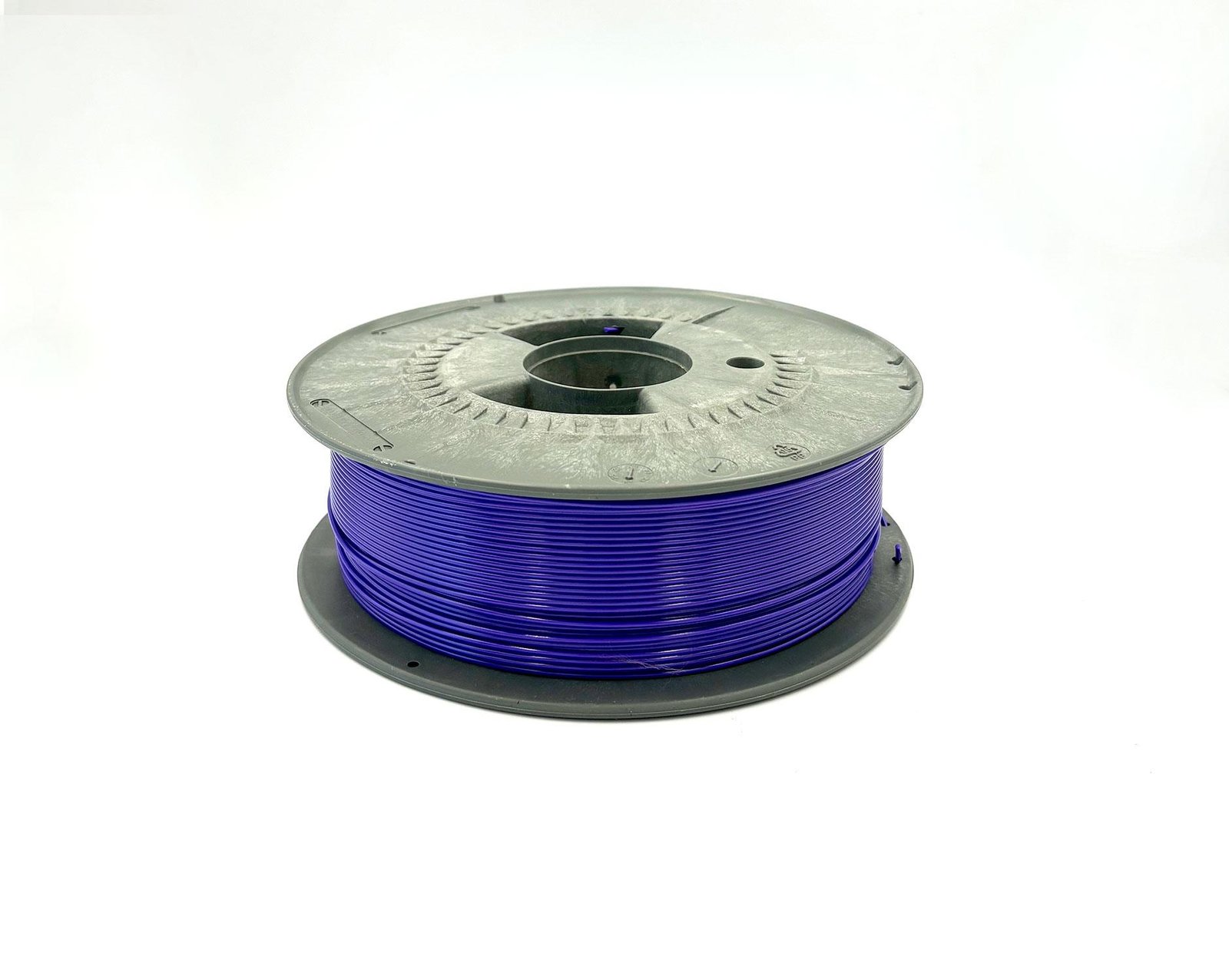

Shot of PETG 1 Kg 1.75 mm Violet. Purchase high quality 3D PETG Filament

PCTG is quickly becoming the go-to filament for 3D printing enthusiasts and professionals seeking strong, crystal-clear parts with greater durability than PETG or traditional PLA. Whether you’re printing transparent covers, light guides, or display pieces, the allure of PCTG lies in its glossy, glass-like finish. But achieving that perfect look doesn’t stop when the print comes off the bed—post-processing is where your results can truly shine or, if you’re not careful, where that hard-earned clarity can be lost to clouding and haze. This guide covers how to post-process PCTG effectively, so you keep your prints as clear as possible.

Understanding Why PCTG Clouds During Post-Processing

Before diving into technique, it helps to understand what causes clouding. PCTG, like PETG, is a copolyester that’s somewhat softer than polycarbonate but still highly impact-resistant and optically clear. However, its very clarity means that even slight surface scratches, residue, or improper chemical exposure show up immediately as haze or cloudiness. The most common culprits? Overzealous sanding, using the wrong grit, aggressive chemicals, and skipping essential cleaning steps. Knowing these risks is the first step toward avoiding them.

Preparation: Cleaning and Assessing Your PCTG Print

Great results start with careful prep. Once your print is done, avoid touching it with bare hands—oil or dirt can mar the surface and lead to cloudiness after polishing. Rinse the part gently in lukewarm water to remove dust and leftover support material. If necessary, use a soft, lint-free cloth and mild dish soap, but skip any abrasive sponges. Inspect the print under bright light. Note any visible layer lines, blobs, or rough spots—these are what you’ll want to address in post-processing, but be realistic about how much material you can safely remove without affecting wall thickness or clarity.

Sanding: The Most Critical Step

If you need to smooth out imperfections, start with the finest grit that will actually remove the defects. For minor bumps or layer lines, jump in with 800 or even 1000 grit wet/dry sandpaper—coarser grits (like 400 or 600) should only be used for truly rough surfaces and must always be followed by progressively finer grits. Always sand wet, never dry, as water reduces friction and helps prevent scratches that cause haze. Sand in a single direction for each grit, then rotate 90 degrees when you switch to a finer paper. This method makes it easier to see when the previous grit’s scratches are fully removed. Move from 1000 up through 2000, 2500, and finish with 3000 grit or higher for the best clarity.

Polishing for a Glass-Like Shine

Once your part is silky-smooth to the touch, it’s time to polish. Use a plastic polish specifically formulated for clear polymers—avoid automotive or metal polishes, which may contain harsh abrasives or chemicals incompatible with PCTG. Apply a tiny amount of polish to a microfiber cloth and rub gently in small circles. For larger parts, a rotary buffer with a soft pad set at low speed can save time, but use a delicate touch to avoid overheating or warping the print. Wipe off any residue with a clean section of your cloth, then repeat as needed until the part gleams.

Chemical Smoothing: Approach With Caution

Some makers wonder if chemical smoothing can shortcut the sanding and polishing process. For PCTG, this is generally not recommended. Common solvents like acetone or tetrahydrofuran (THF) used for smoothing ABS or PETG can damage PCTG, leading to stress cracking or irreversible clouding. There are specialty smoothing agents on the market, but always test on a scrap piece first and follow all safety precautions. If you’re set on chemical smoothing, research products explicitly designed for copolyesters and never skip the patch test.

Flame Polishing: For the Experienced Only

Flame polishing is sometimes used for acrylic and polycarbonate to achieve a near-perfect transparent edge. PCTG can be flame polished, but this requires precision. Use a small, clean butane torch and pass the flame quickly and evenly over the surface—never linger, or you’ll risk bubbles or warping. Practice on failed prints before attempting this on a finished part. Always work in a well-ventilated area and wear safety glasses.

Final Cleaning and Protective Coatings

After you’ve achieved a smooth, glossy finish, wash the part again with clean water and dry with a lint-free cloth to remove any remaining polish. Optionally, you can apply a thin acrylic-safe clear coat spray to protect the surface from fingerprints and minor scratches. Make sure the coating is compatible with copolyesters and test on a small section first.

Troubleshooting: If You See Clouding

Even with the best intentions, sometimes cloudiness creeps in. If you notice mild haze after sanding, return to a finer grit and repeat the process, ensuring plenty of water is used. For persistent cloudiness, a careful round of polish may restore clarity. In cases of severe chemical damage or deep scratches, you may need to reprint the part and adjust your process.

Expert Tips for Crystal-Clear Results

  • Always use clean, fresh water when sanding or rinsing your parts.
  • Minimize handling with bare hands during post-processing.
  • Use dedicated, plastic-safe products for polishing and coating.
  • Take your time—rushing through sanding or polishing almost always leads to more haze.
  • When in doubt, test on scrap prints before working on your final piece.

Conclusion

Post-processing PCTG for maximum clarity is equal parts science and art. With careful preparation, the right techniques, and patience, you can achieve results that rival commercial-grade transparent plastics. Keep experimenting, and for more tips, product recommendations, and expert guidance on PCTG and other filaments, check out the resources and filament selection at FilaLab.shop.
